About

ha-esphome-dht11 is a project to allow me to scatter remote temperature and humidity sensors around my house.

Components

• An ESP32 DevKit board (Consider this nodemcu-32s for the board.)
• DHT11 temperature/humidity sensor
• 4.7k Ohm resistor (Probably best value overall.)
• perfboard

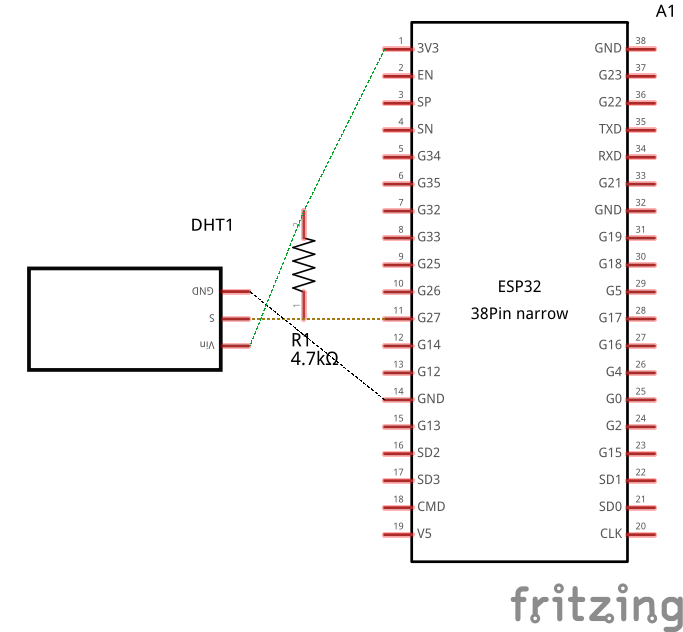

Schematic

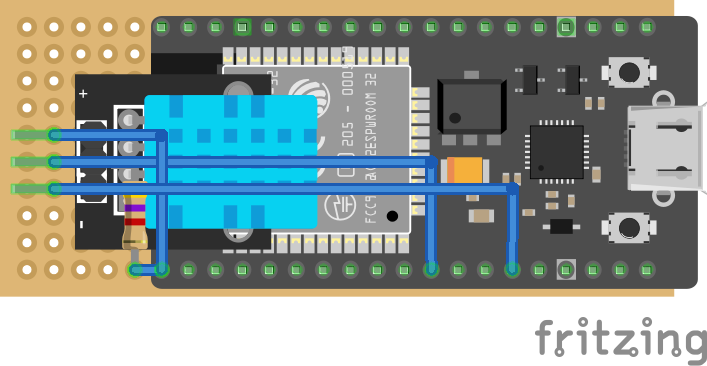

Layout

Installation

You can use the button below to install the pre-built firmware directly to your device via USB from the browser.
